845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine

รายละเอียดสินค้า

Metal Roof Tile Roll Forming Machine, Non-stop Pressing and Cutting

Application:

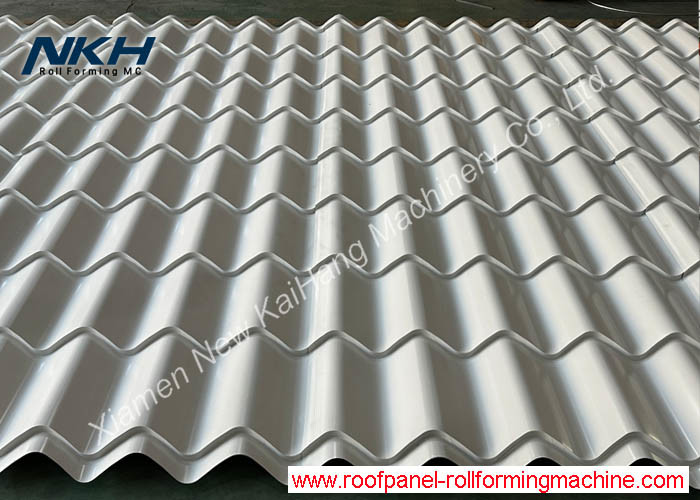

Metal step roof tiles produced by glazed tile roll forming machine from high quality pre-painted sheets most time apply as roofing on Villas or some residential buildings.

There is only one but key difference between a metal glazed roof tile and a regular metal roof panel: Steps! Generally speaking, a regular metal roof panel with steps is called a metal glazed roof tile !

Quick Detail:

1. Thickness : 0.4mm-0.7mm
2. Material : High quality pre-painted coil
3. Input width : 1220mm
4. Effective width: 845±4mm
5. Material weight : 10tons as standard
6. Driven way: Gear/Sprocket driving

Machine list:

1. Hydraulic de-coiler or manual un-coiler rack
2. Roll former
3. Hydraulic stair drawing device, non-stop pressing
4. Hydraulic cutting device, non-stop cutting
5. Stacker
6. PLC control systems

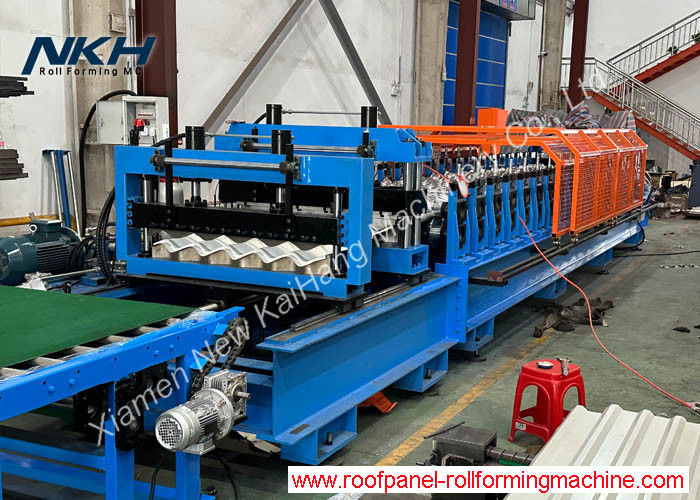

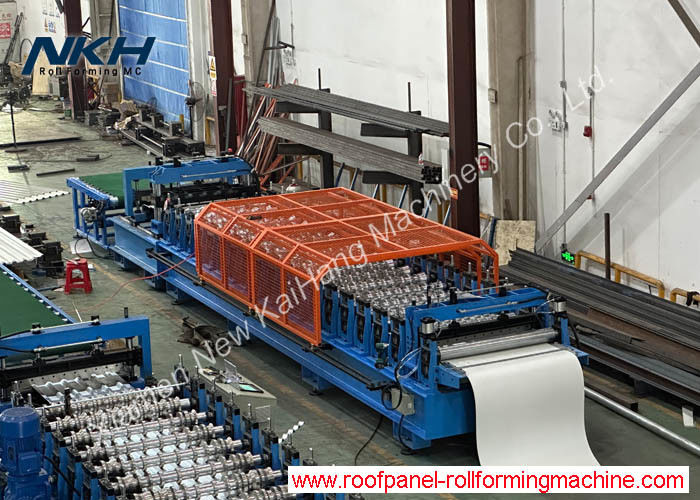

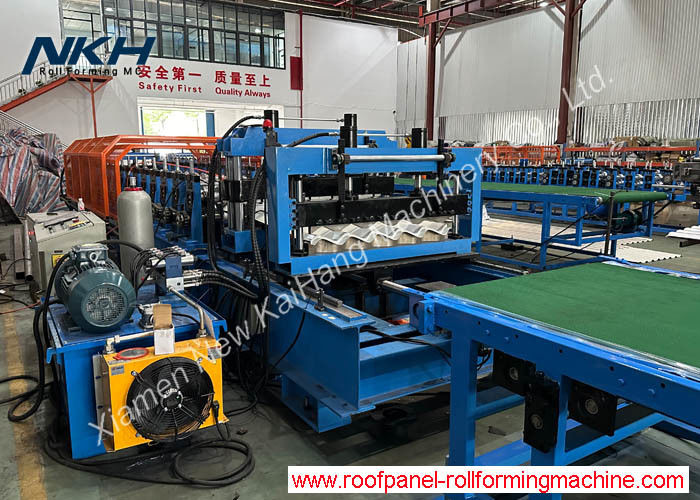

Drawings/Pictures of Complete Line:
